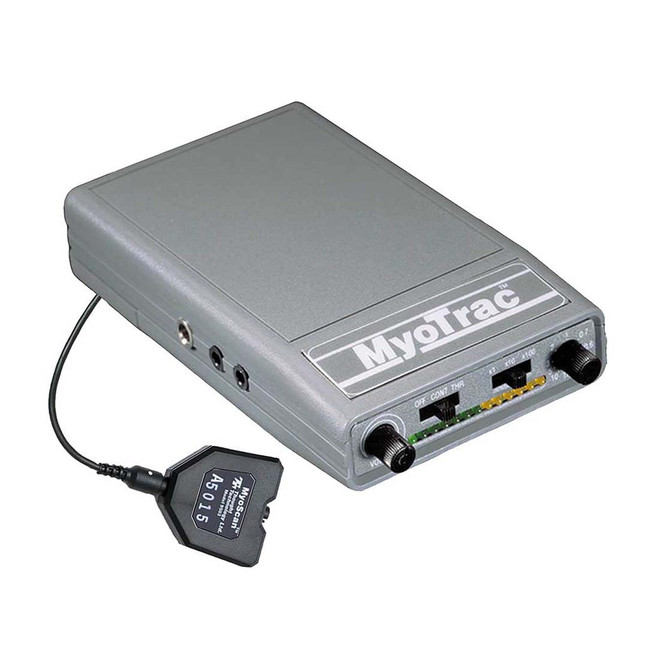

MyoTrac is a highly sensitive compact EMG Monitor is ideal for training in the clinic, home or office.
MyoTrac™ packs extreme sensitivity into a light, compact unit that works for you and your patient in the clinic or home. It is ideal for clinical assessment as well as for self-training. MyoTrac™ allows total freedom of movement for ambulatory exercises and provides a bright light bar and proportional tone biofeedback. The unit is accurate and reliable. MyoTrac™ offers three sensitivity ranges for muscle strengthening, rehabilitation or relaxation therapy, and provides stable readings in less than a second.
Complete System Includes:
Features
- The highly-sensitive MyoScan active sensor needs no skin preparation
- Two modes of biofeedback - LED and 5 way tone - provide flexibility
- 5 way tone feedback includes proportional, above and below threshold and 4-second delayed alarm
- 13-segment LED bargraph offers expanded range for precise visual feedback
- Wide and narrow bandpass filters provide precise monitoring of normal and fatiguing muscles and eliminate heart-beat artifact
- 0 to 2 Volts DC output allows to connect to third party equipment and permits computerized monitoring
- Low current consumption provides long battery life
Includes
- T4000 MytoTrac Electromyograph Hardware
- (1) MyoScan 3 snap sensor head with 57 1/2 inch lead
- Earphone
- Users manual (English)
Specifications
Range:
- (x1) 0-20uV
- (x10) 0-20uV
- (x100) 0-2000uV
Input Impedance: 1,000,000 MegOhms
Physical Size: 2.4"w x 4.4"h x 1" deep (61mm x 112mm x 25mm)
Weight: 2.5 oz
Power: (2) 9 volt batteries (not included)
USA Federal law restricts this device to sale by or on the order of a physician or any other practitioner licensed by the law of the state in which he or she practices to use or order the use of this device.
