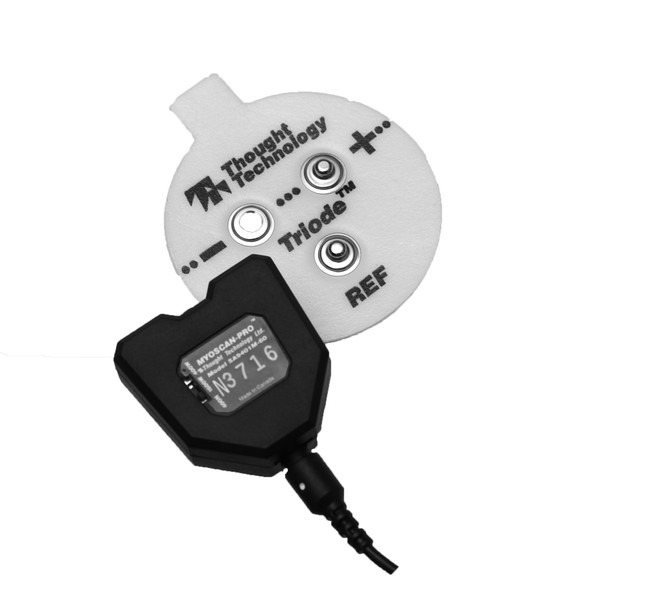

EMG MyoScan Pro is a pre-amplified surface electromyography sensor used with the ProComp Infiniti channels C – H for RMS sEMG. Features a range switch in the sensor head to change filter settings between 0 – 400 µV Narrow filter, 0 – 400 µV Wide filter, 0 – 1600 µV Wide filter with 0.1 µV sensitivity. Compatible with Triode electrodes or extender cables for wider placement of electrodes.
Specifications
- Size: 37mm x 37mm x 12mm (1.45" x 1.45" x 0.45")
- Weight: 25g (0.5 oz)
- Input Impedance: > 10¹²Ω in parallel with 10pF
- Signal Input Range: 0 – 2000 uVRMS
- Sensitivity: < 0.1 uVRMS
- CMRR: > 130 dB
- Channel Bandwidth: 10 Hz-1 kHz
- Signal Output Range: ±2.0V (+ 2.8V if used with Sensor Isolator)
- Input / Output Gain: 0 – 400 uVRMS, 0 – 1600 uVRMS
- Supply Voltage: 7.26 V (±0.02 V)
- Current Consumption: < 1.5mA
- Accuracy: ±5%
